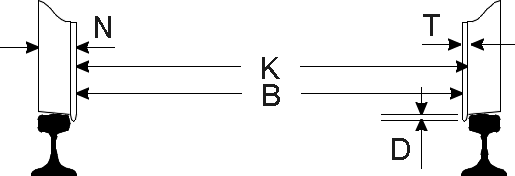

Wheels

Wheelhnd

Back to
Back (B)
Tyre
Width(N)
Flange
Width(F)
Flange
Depth(D)
Wheel Check (K)
Min Max Min Max Min Max Min Max Max
Proto inch .611 .611 .063 .063 .013 .016 .016 .016
mm 15.52 15.52 1.61 1.61 0.34 0.4 0.4 0.4
P:87.1 inch .610 .613 .064 .069 .012 .014 .012 .014 .623
mm 15.48 15.55 1.62 1.75 0.31 0.35 0.31 0.35 15.84
HO inch .566 .108 .03 .028 .028
mm 14.4 2.74 0.71 0.7 0.7

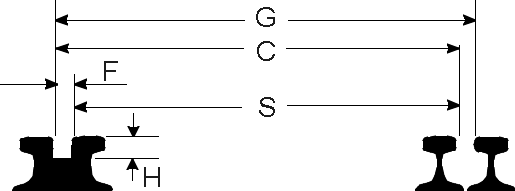

Track

Trackhnd

Track
Gauge(G)
Check
Gauge(C)
Flangeway
Width(F)
Between Checks
Min Max Min Max Min Max Max
Proto inch .649 .655 .628 .628 .022 .022
mm 16.5 16.64 15.95 15.95 0.55 0.55
P:87.1 inch .649 .656 .625 .022 .023 .604
mm 16.48 16.67 15.88 0.57 0.60 15.33
HO inch .649 .672 .605 .05
mm 16.5 17.1 15.4 1.27

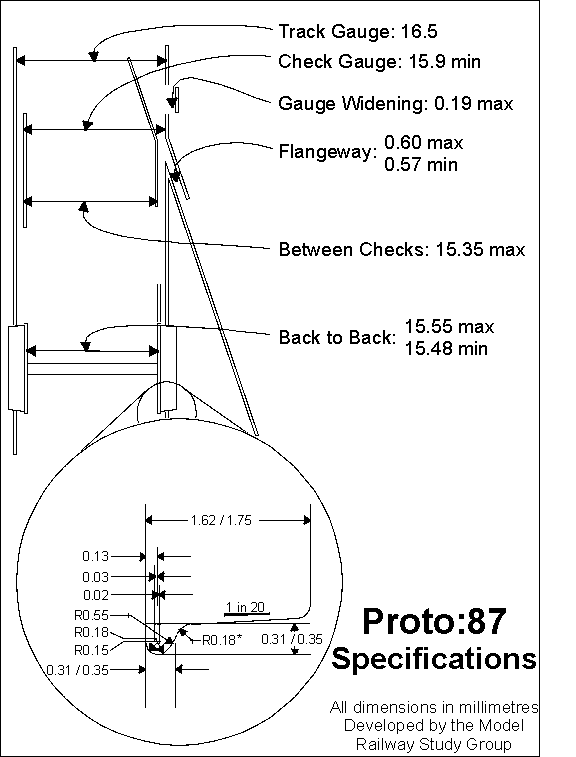

All in Onestandards
